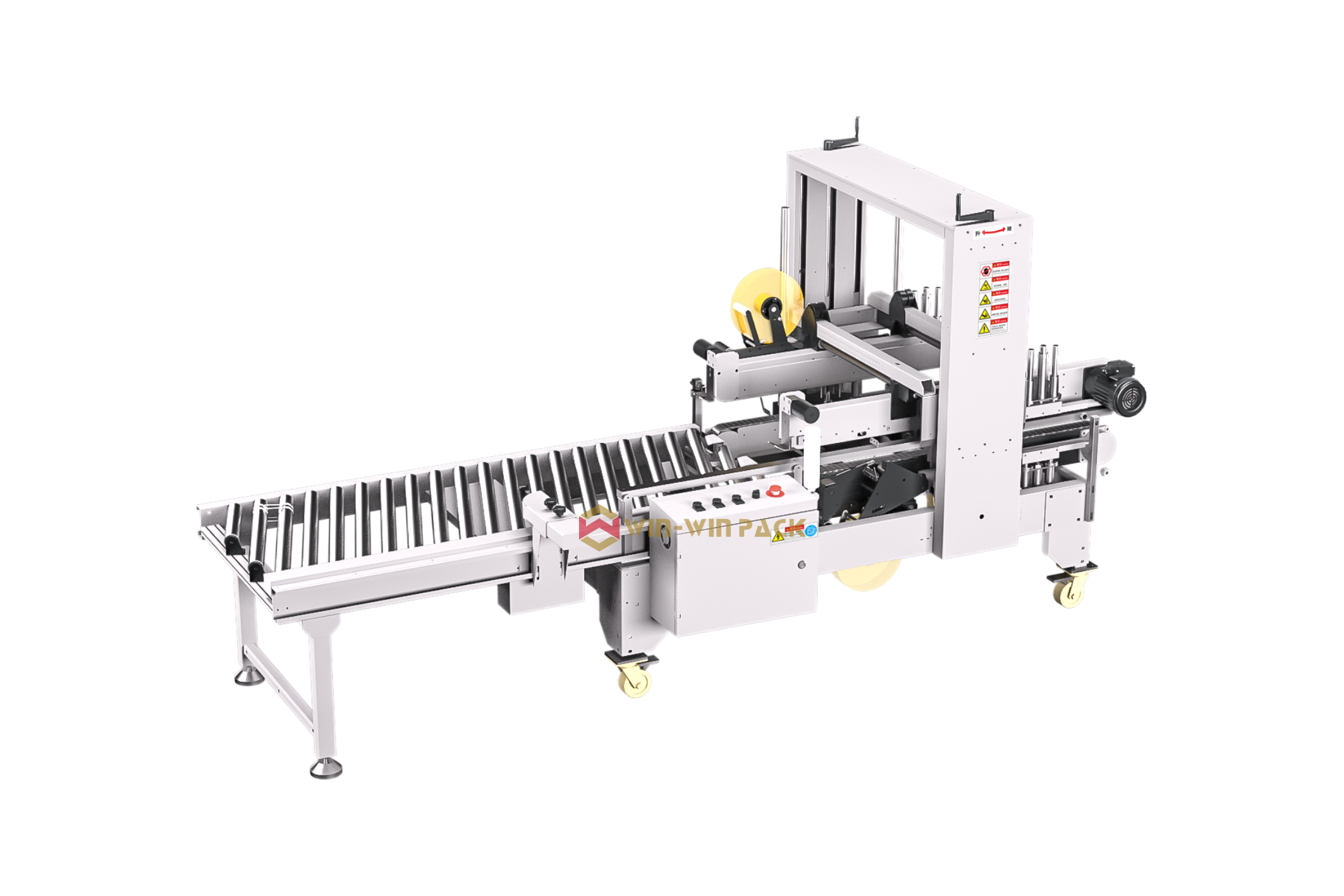

Model: WWP-950G
Conveyor speed: 20 m/min
Machine speed: 8–10 ctns/min
Working air pressure: 6 kgf/cm²
Packing size: Min L340 × W250 × H200 mm / Max L700 × W500 × H500 mm
Max. weight of product: 30 kg
Power supply: 220/380V, 50/60Hz, 1 Phase
Power: 500 W
Adhesive tape width: 48–72 mm
Table height: 600 mm (can be customized)
Machine dimension: L1950 × W1250 × H1500 mm
Machine weight: 450 kg
Imported parts, electrical and pneumatic components.
Manually adjust the height and the width for different size of cartons.
Advanced pneumatic control system compare with the complicated electrical control system.
For cartons’ four sides and corners sealing.
Cutter Safety system to prevent hands form stabbed by the cutter.
Adopts photoelectricity induction control system.
Automatic 90° cartons turning and pushing system.
Suit for sealing cartons of the same size at the same time.
Heavy duty built, both steel and stainless steel types.
Use soft brush to quickly brush flat without folding angle.
The key parts are made of fetal membranes and laser cutting.
Adjustment time is 5~10 minutes per time for replace the carton.
Independent small electric cabinet design ensures safety and stability.
It can be used as a stand-alone machine or in combination with an assembly line.
It can be combined with WWP-850D to form an I-shaped/L-shaped sealing machine.
