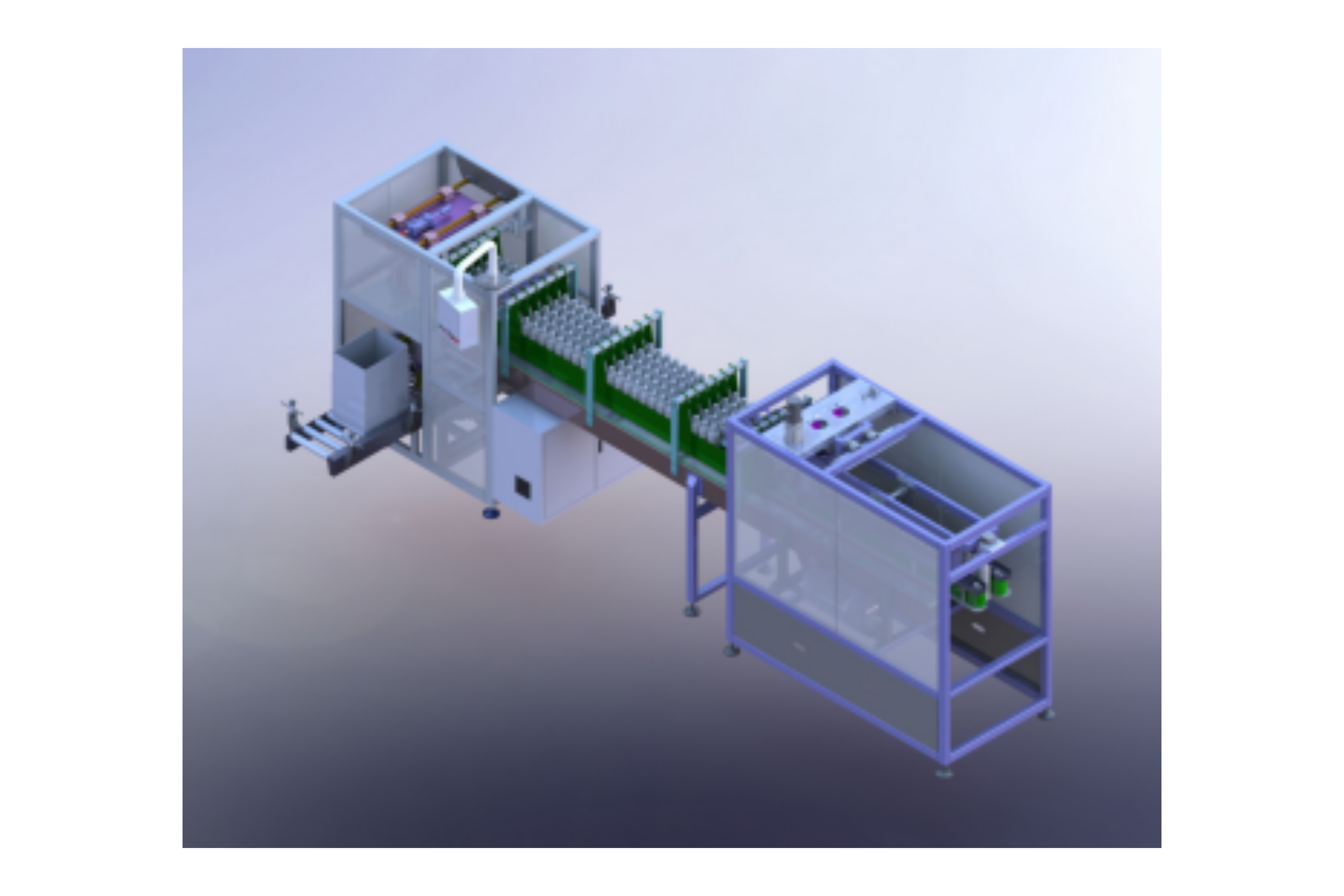

Automatic drop packer for bottles WWP-DP01





Technical parameters, Technical parameters

product model

WWP-DP01

Boating speed

In 5-25 cases / min

Carton size

L 200-500 * W150-450 * H150-450mm (customizable)

Power / power

380V 5KW 50/60HZ

air supply

0.5-0.8MPa

Machine size

L 2500 * W1600 * 1800mm (excluding feed line)

machine weight

600kg

Product description:

  • Bottle drop type packing machine is a strong compatibility, can be applicable to different specifications of the carton packing machine, the whole line of bottles moved to the top of the carton;

  • According to the packing requirements, can automatically arrange the products;

  • After automatic arrangement of products, the packaged products fall into the carton through the positioning device;

  • Through the landing box buffer device to achieve flexible landing box, a wide range of application, can be applicable to a variety of products packing (mineral water bottles, oil barrels, etc.);

  • This machine adopts, Japan Mitsubishi PLC + touch display control, equipped with missing bottle warning device, no bottle without packing protection;

  • Automatic drop packing machine has a wide range of applications, small area, reliable performance, simple operation, can be widely used in chemical, pharmaceutical, salt, food, beverage and other industries of various products of automatic high-speed packing
