Delta robot pick and place case packer WWP-RP01





Technical parameters, Technical parameters

product model

The WWP-RP01-2 axis

Boating speed

Between 25-45 beats / min

load

25K g

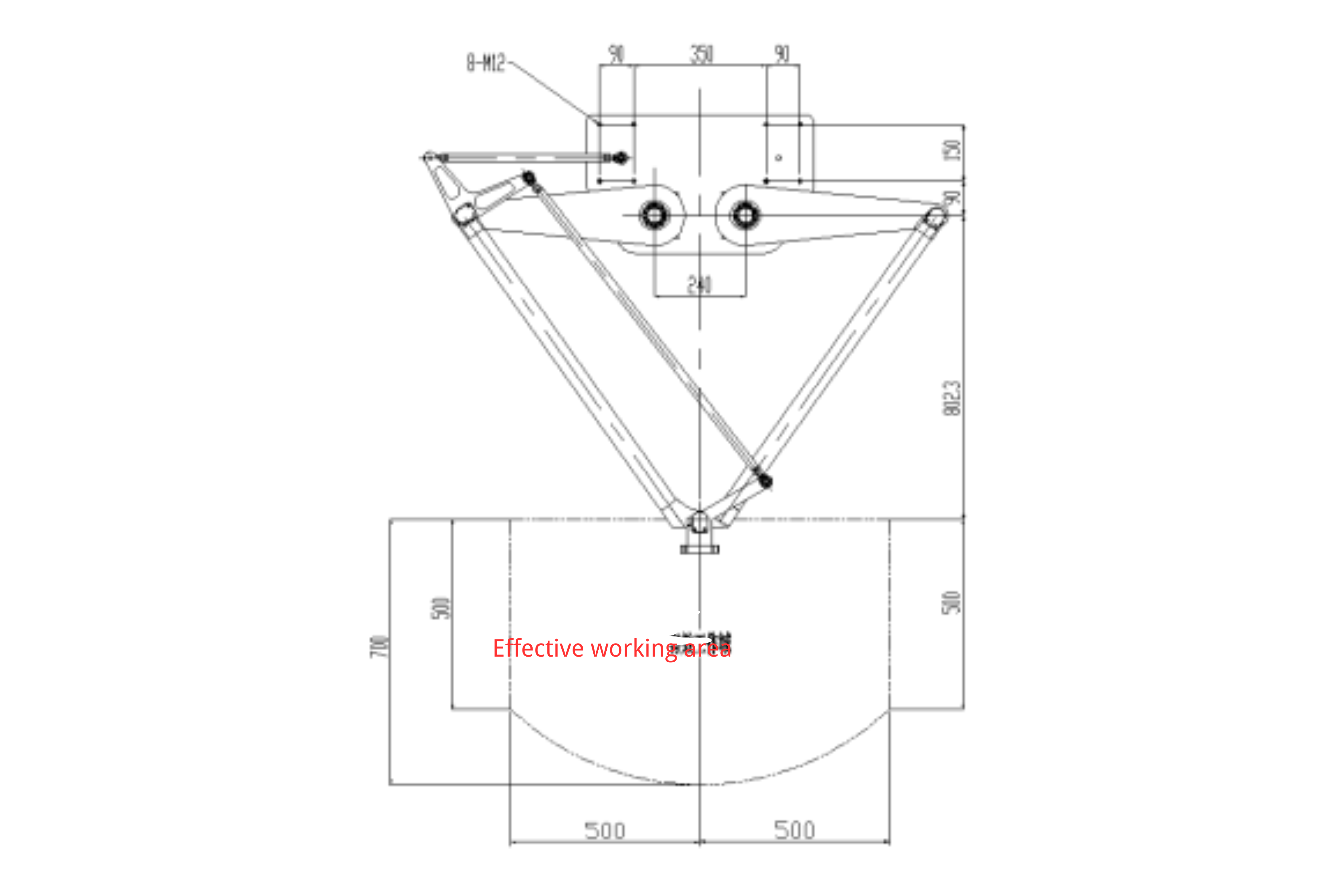

Rated scope of work

1000*347mm

Duplicate localization accuracy X, Y, and Z

±0.3mm

Repeat the Angle

±0°.1

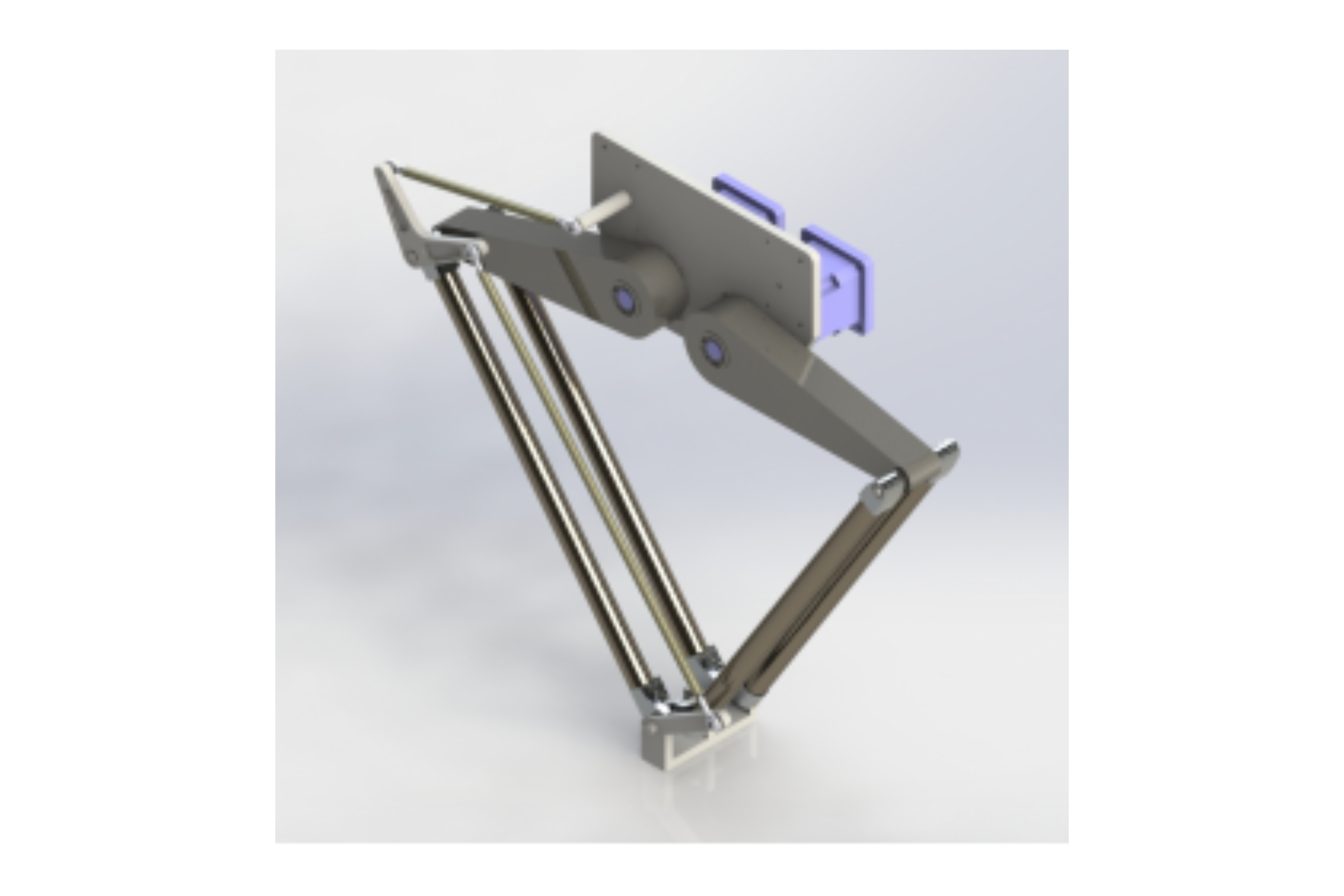

The kinematic structure

Delta type

activity

2+1*

levels of protection

I P65

noise level

<70dB(A)

weight

80/210Kg

Product description:

  • Two-axis robot, automatic packing machine has a wide application range, small footprint, reliable performance, easy to operate;

  • Can be widely used in chemical industry, medicine, salt, food and other industries of various products of the full automatic packing;

  • Although the body is small, can be integrated into compact packaging machinery, but can meet all your requirements in the distance and load;

  • With motion control and synchronization performance, the robot is very suitable for application in the flexible packaging system, greatly shortening the packaging cycle time;

  • Small volume, fast speed, specially optimized according to the packaging application;

  • Equipped with a complete set of auxiliary equipment (from the integrated air and signal system to the feeder), equipped with packaging software;

  • Mechanical integration is simple, programming is very convenient;
