Communication interface external interface: R232 serial port / Parallel parallel port / USB2.0/ network port

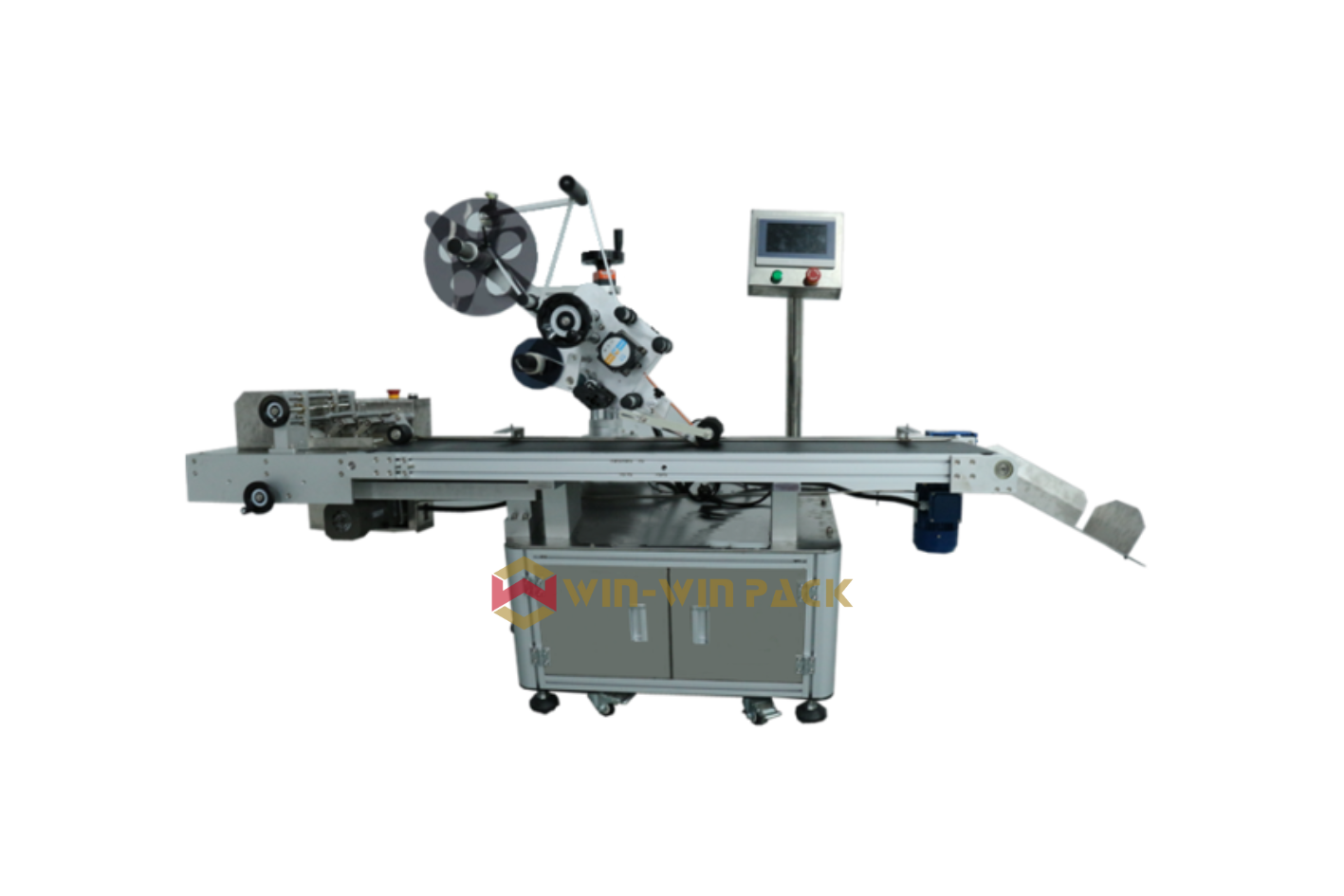

Place of labeling: Flat surface labeling machine on the product
Print content: Text, serial number, date, pattern, one (2 d) bar code and other marks
Labeling accuracy (excluding product, label error): ±1mm
Labeling speed (pcs / min) (related to manual operation): 25~80pcs/ min
Applicable label (long) mm: (bottom paper size) (15-180mm) × (20mm-104mm)
Applicable product size: Length: 30mm~300mm * Width: 30mm~300mm * Thickness: 0.2mm~150mm
Applicable label outer diameter: Φ300mm
Applicable label inner diameter: φ76mm
Weight (kg): About 120kg
Voltage (V): 220V
Power (W): 600W
Machine dimensions (length, width, height) (mm): 1500×650×1450
Configuration:
Electrical name | Quantity | Brand / Remarks | Electrical name | Quantity | Brand / Remarks |
Stepper motor | 1 set | LEESN | The PLC programmable controller | 1 set | VIGOR |
Stepper motor driver | 1 set | LEESN | human-computer interface | 1 set | FLEXEM/MCGS |
Tagged electric eye | 1 set | SICK/KEYENCE+RIKO | Measurement of electric eyes | 1 set | PANASONIC/KEYENCE |
Worm wheel worm delivery motor | 1 set | CHEEMING | Frequency transformer | 1 set | DELIXI |
Print engine | 1 set | TSC |
Operation process: Release products- -> product transportation (automatic implementation of equipment) - -> print labeling (automatic implementation of equipment) - -> Collect labeled products (automatic implementation of equipment) - -> remove products.
