Troubleshooting Guide: Resolving Suction Issues in Vertical Carton Erector

2024-03-11

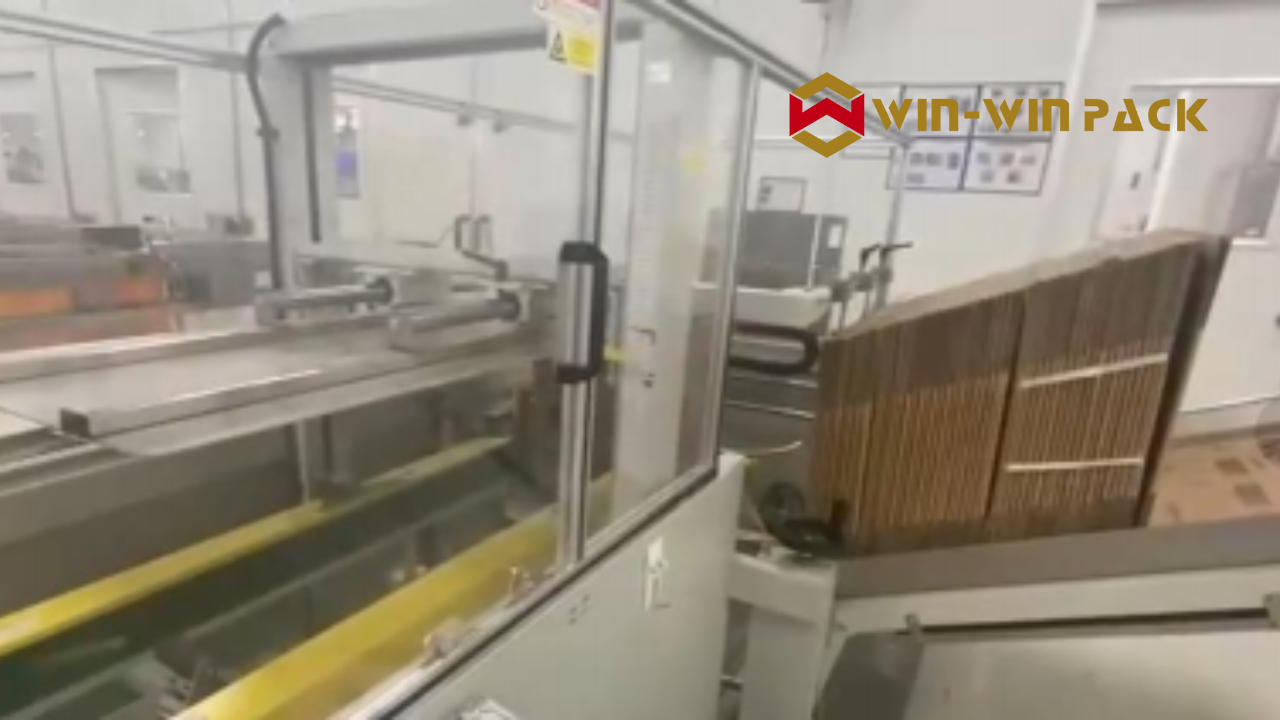

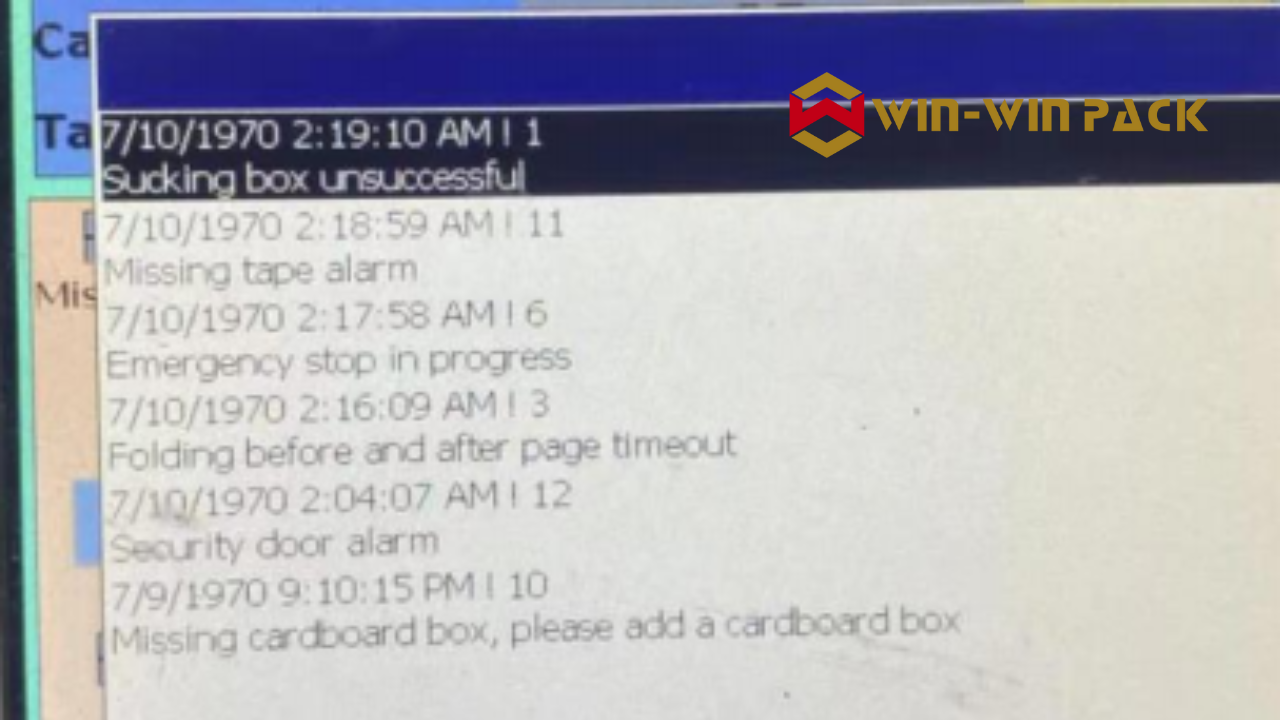

The vertical carton erector is an essential piece of machinery in automated packaging lines, streamlining the process of erecting cartons for efficient product packaging. However, like any machinery, it can encounter issues that disrupt its operation. One common problem faced by users of the vertical carton erector is the machine halting its operation after erecting only a few cartons, triggering an alarm with the message "the suction of the boxes was unsuccessful" displayed on the touch screen.

To troubleshoot this issue, users are advised to follow a series of steps:

• Check Suction Cups: Firstly, it's essential to inspect all suction cups on the machine to ensure they are effectively gripping the cartons. If any suction cups are found to be malfunctioning or unable to create a secure seal with the cartons, they may need to be replaced or adjusted.

• Inspect Air Pressure: Next, users should check the air pressure within the suction cups. Low air pressure can result in inadequate suction, leading to the failure to grip the cartons securely. Adjusting the air pressure settings may be necessary to ensure optimal performance.

If both of the above issues persist, users are instructed to take the following steps:

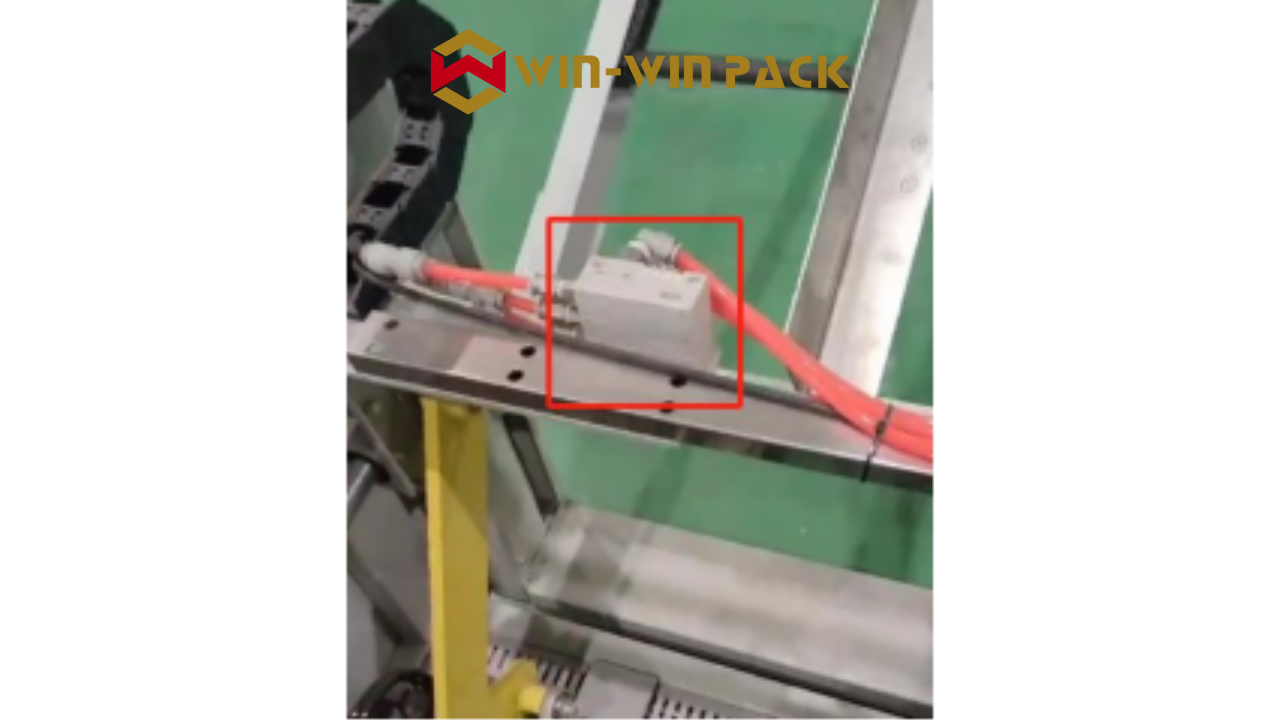

• Open the White Box: Locate the white box on the machine, which houses a crucial component - the filter.




• Clean the Filter: Inside the white box, users will find a filter that may have accumulated dust and debris over time. Cleaning this filter thoroughly is essential to ensure proper airflow and suction performance. Once the filter is cleaned, reassemble the machine and resume operations.

By following these steps, users can address the issue of unsuccessful suction in the vertical carton erector, restoring its functionality and enabling smooth and efficient carton erecting operations within their packaging lines. Regular maintenance and troubleshooting are key to maximizing the performance and longevity of packaging machinery, ensuring uninterrupted production and delivery processes.
