Win-win Pack Launches New WWP-850DH Semi-Automatic Carton Sealer: Efficiency Meets Reliability

Win-win Pack is proud to announce the release of their latest innovation, the WWP-850DH semi-automatic carton sealer.

This machine is designed to streamline your packaging process while ensuring high-quality box sealing.

Automated Efficiency: The WWP-850DH automatically folds the top flaps and seals both the top and bottom of your cartons in one smooth motion, saving you time and effort.

Safety First: Equipped with a blade guard to prevent accidental injuries during operation, prioritizing operator safety.

Durable Performance: The precisely engineered tape applicator ensures smooth, reliable application for long-lasting use.

Stable Sealing: The lower sides utilize belts for secure sealing of both upper and lower cartons, offering an economical, fast, and stable operation.

Adaptable Design:Manually adjust the width and height to accommodate various carton sizes, providing great versatility.

Energy-Saving Design: The automatic sleep function helps conserve energy when the machine is not in use.

Machine part details：

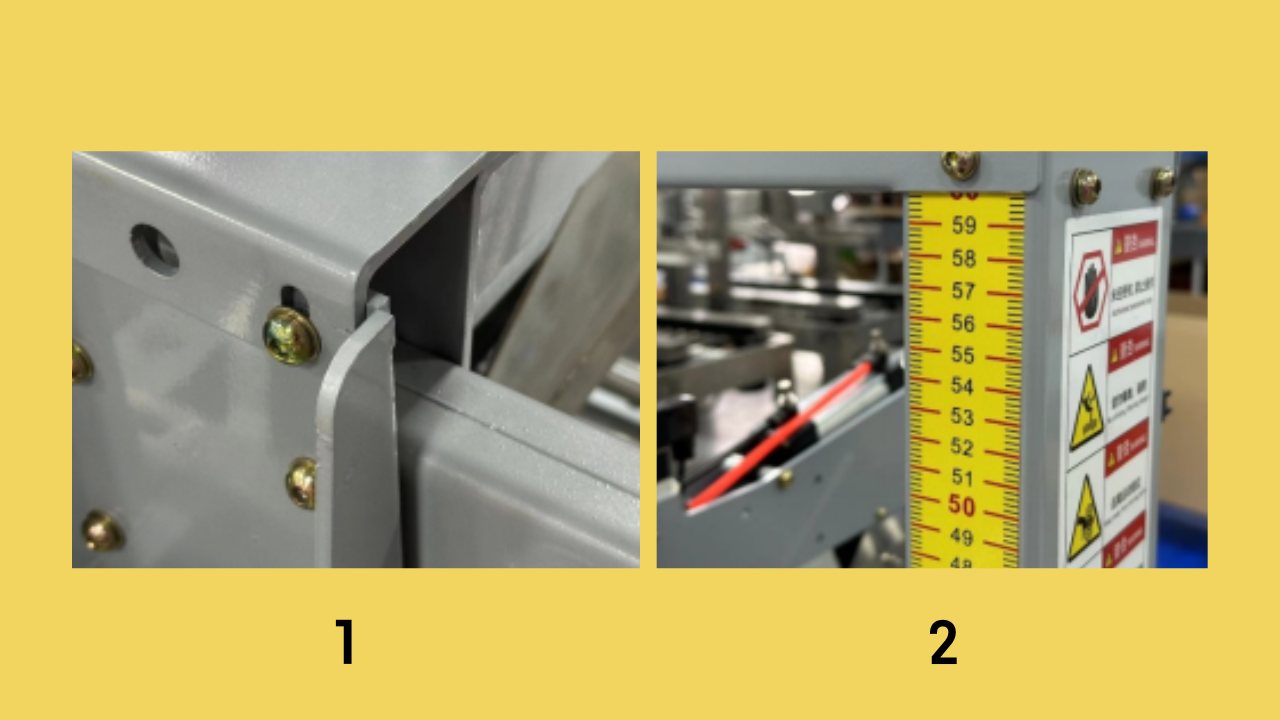

1. The thickness of the overall frame is 0.3mm, and the thickness of the frame with large load-bearing is 0.5~0.8mm.

2. Clear size marks in yellow are convenient for workers to check and  record.

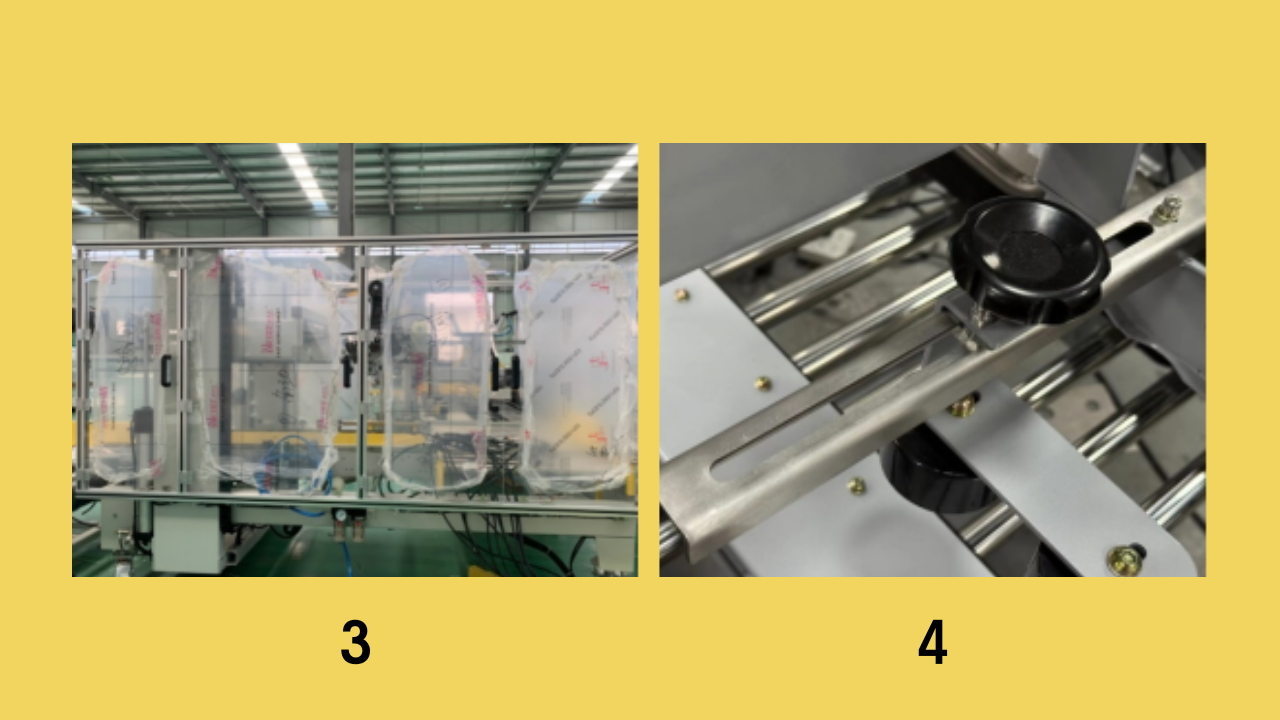

3. Option: Cover the machine as picture, when the door's opened, the machine will be stopped.

4. The guide wheel can make the carton in the middle position when the machine is sealing, the carton will not go askew, and affect the sealing effect.

Technical Specifications:

Model: WWP-850DH

Machine Speed: 25-30 cartons/minute

Belt Speed: 28-30 meters/minute

Working Air Pressure: 6kgf/cm2

Carton Size:

Length: 200-500mm

Width: 120-400mm

Height: 90-400mm

Maximum Product Weight: 30kg

Power Supply: 220/380V, 50/60Hz, 1 Phase

Power Consumption: 200W

Adhesive Tape Width: 36-72mm

Table Height: 450/600/750mm (customizable)

Machine Dimension: 1650mm (L) x 1050mm (W) x 1350mm (H)

Machine Weight: 210kg

Standard Components:

Relays: Schneider/Chint

Contactors: Schneider/Chint

Push Button Switches: Siemens APT/Chint

Motor: Taiwan GPG

Pneumatic Components: Taiwan Airtac

Tape Cutting Blade: Tungsten steel material W6

Win-win Pack is dedicated to providing customers with superior packaging solutions. The WWP-850DH semi-automatic carton sealer offers an efficient, reliable, and cost-effective way to meet all your box sealing needs.
