No. |
Component Category |
Brand / Model |
|
1 |
Relay / Contactor |
Schneider / Chint |
|
2 |
Contactor |
Schneider / Chint |
|
3 |
Push Button Switch |
Chint |
|
4 |
Motor |
Taiwan GPG |
|
5 |
Push Button Switch |
Siemens APT / Chint |
|
6 |
Pneumatic Components |
N/A |
|
7 |
Tape Cutting Blade |
Tungsten Steel (W6) |
| Parameter | Specification |
|---|---|
| Model | WWP-950WS |
| Conveyor Speed | 20 m/min |
| Packing Size | Min: L150 × W120 × H130 mm Max: L∞ × W500 × H500 mm |
| Power Supply | AC 220/380V, 50/60Hz, 1 Phase |
| Power | 200 W |
| Table Height | 450 / 600 / 750 mm (customizable) |
| Adhesive Tape Width | 36–72 mm |
| Machine Dimension | L1230 × W850 × H1350 mm |
| Machine Weight | 150 kg |

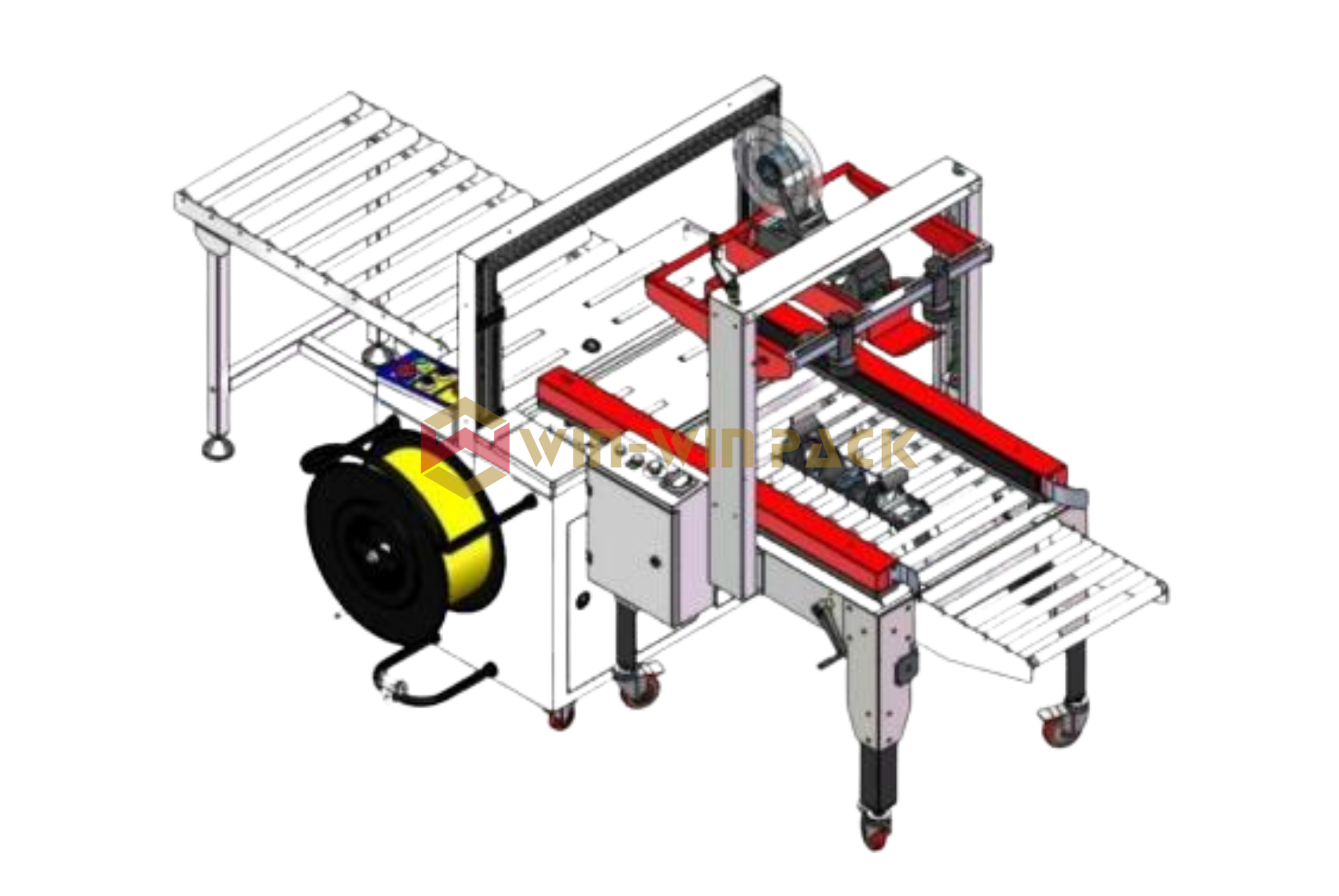

1. Carton sealer with strapping machine/Tabel heigh H750mm（Suitable for light and short cartons）

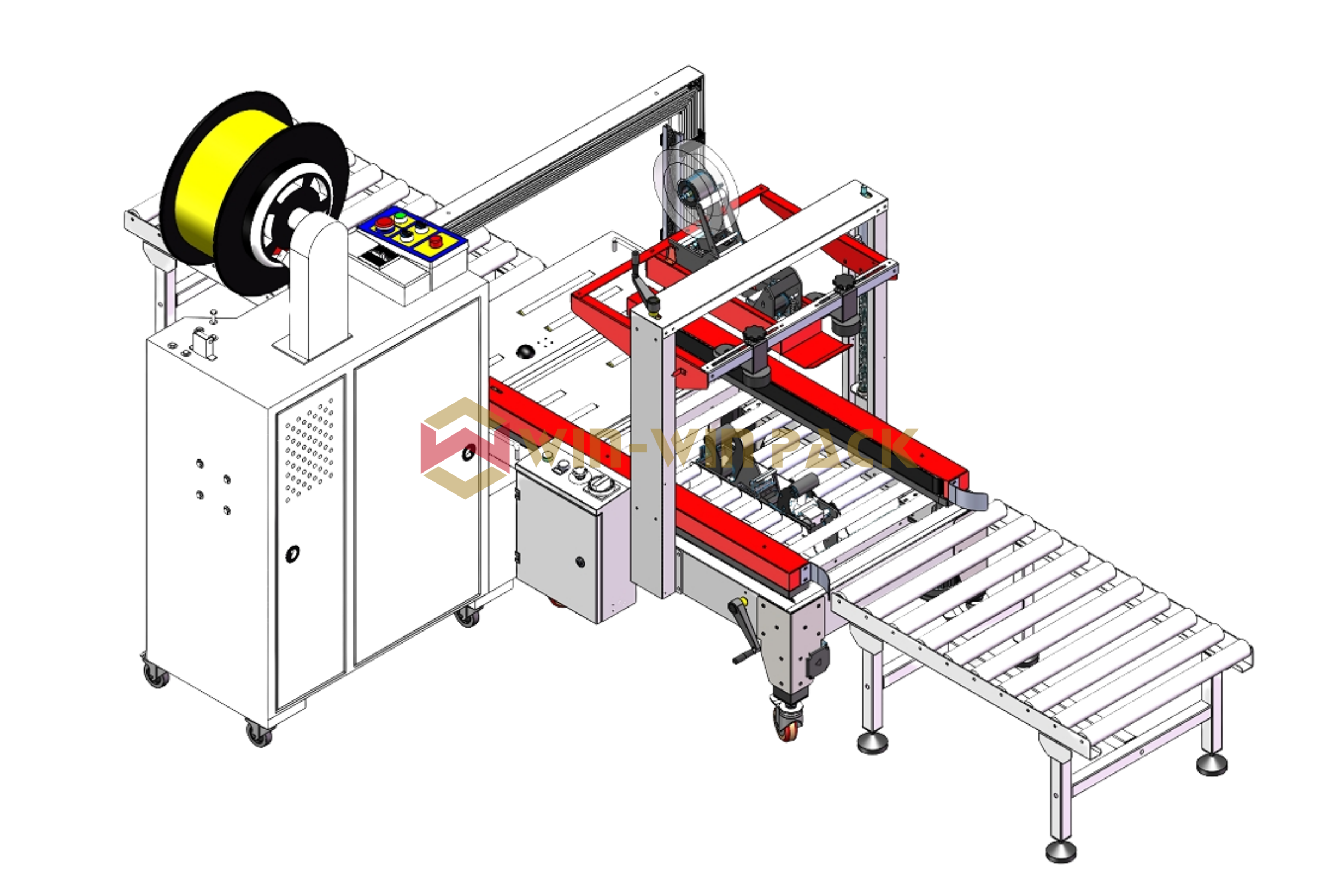

2. Carton sealer with strapping machine/Tabel heigh H450/600mm（Suitable for high cartons）
