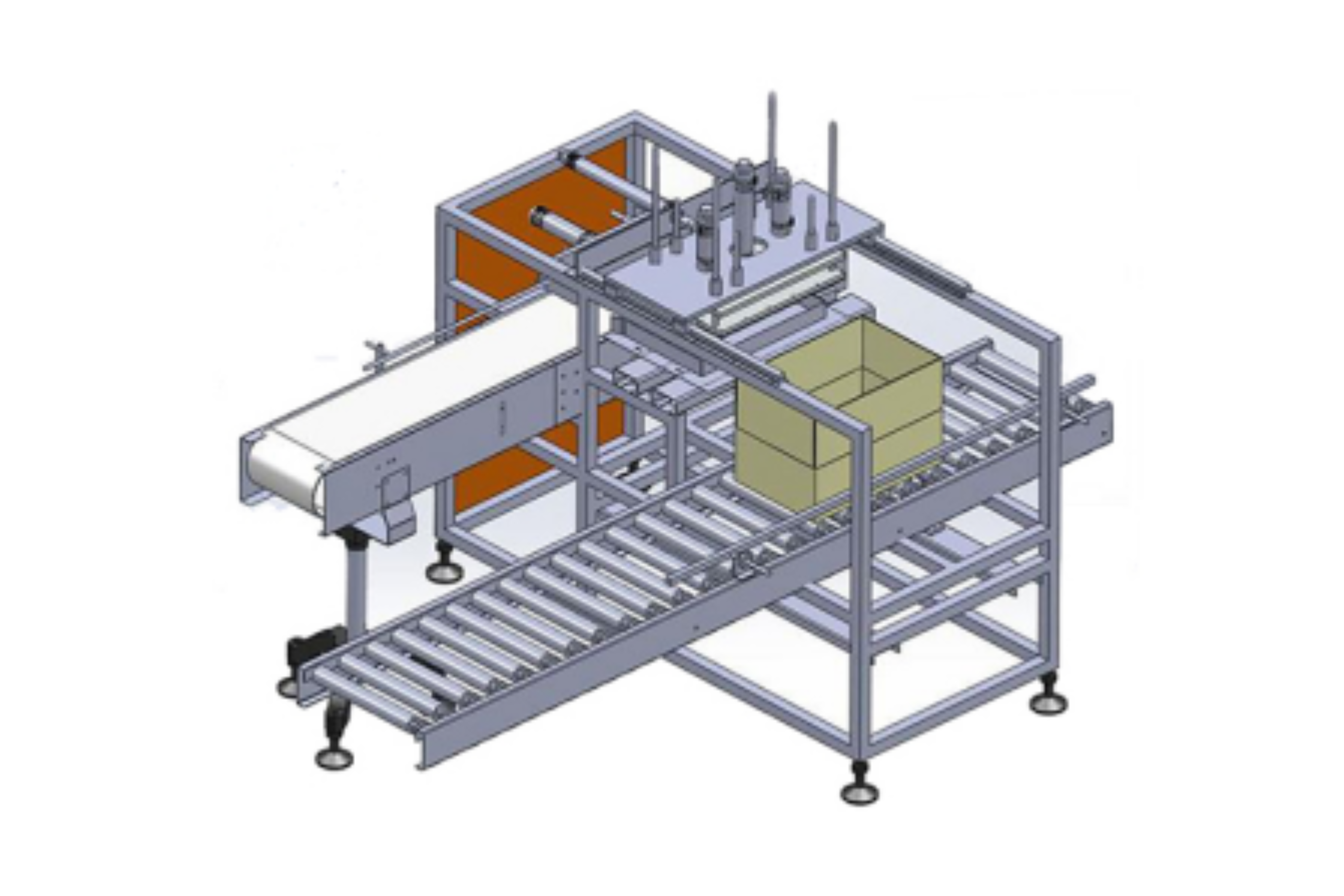

Mechanical transfer pick and place case packer WWP-MP01

Technical parameters, Technical parameters

product model

WWP-MP01

Boating speed

In 2-8 cases / minute

Carton size

L 200-500 * W200-450 * H150-450mm (customizable)

Power / power

380V 2KW 50/60HZ

air supply

0.5-0.8MPa

Machine size

L 2800 * W2100 * 1800mm (including feed line)

machine weight

600kg



Product description:

  • This equipment is a mechanical transplanting packing machine, using high-speed distribution device to package various containers, can package bottles, boxes, bags, heterosexual items, etc., and also applicable to packing boxes with partition.

  • The packing clamp can use the suction head, the claw hand, etc., put the material into the open carton, when the clamp is lifted, the carton discharge, sent to the box sealing machine;

  • The packing mode adopts cylinder drive packing clamp synchronous packing, which can be equipped with multiple packing clamp heads to be used at the same time;

  • This machine is controlled by the Mitsubishi PLC + touch display screen. With material shortage warning shutdown, no material, no packing and other devices;

  • This equipment is greatly convenient to operate, management, reduce production personnel and labor intensity, is an essential equipment for automatic scale production;

  • This machine is widely used in medicine, food, daily chemical and other light industry industries.
