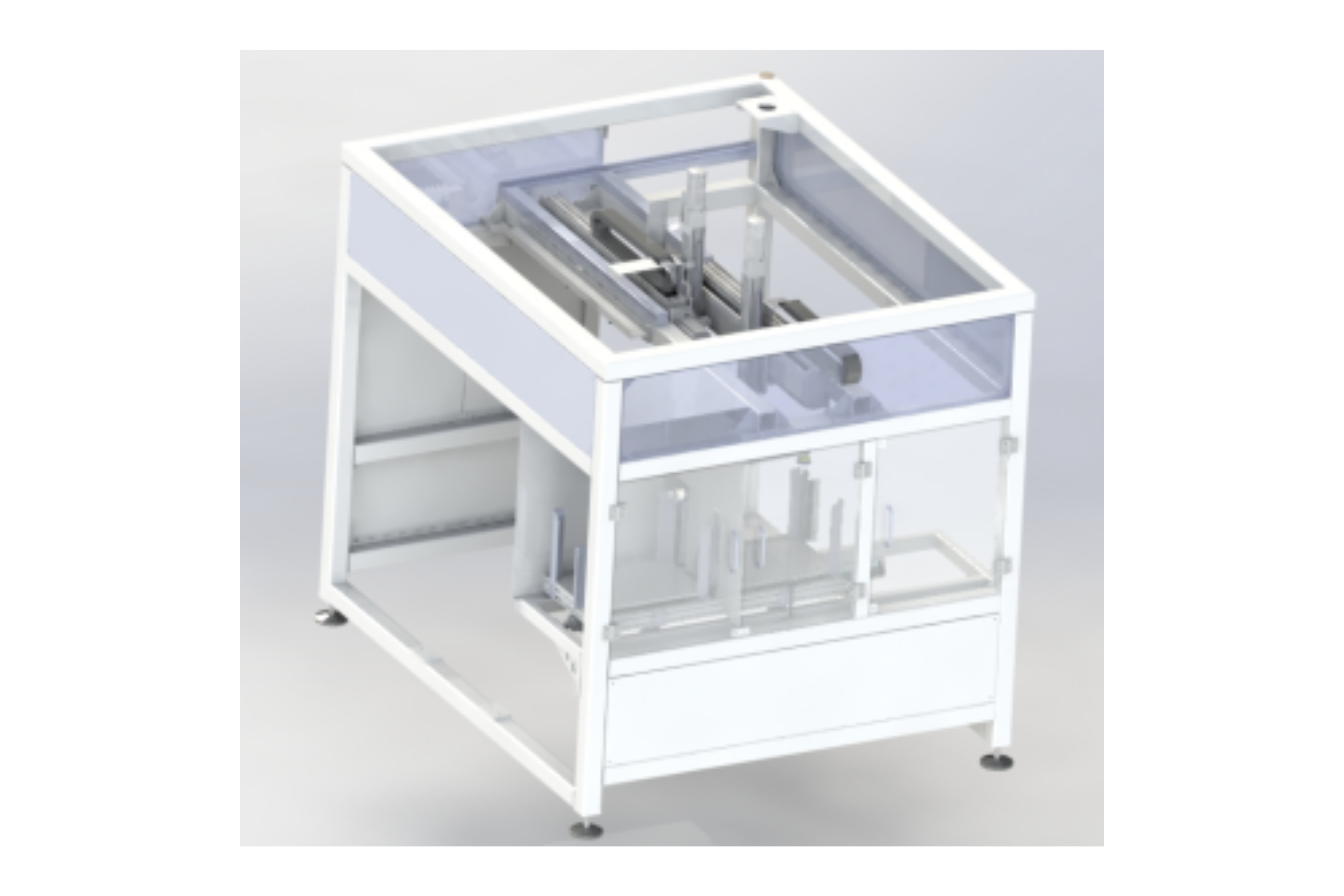

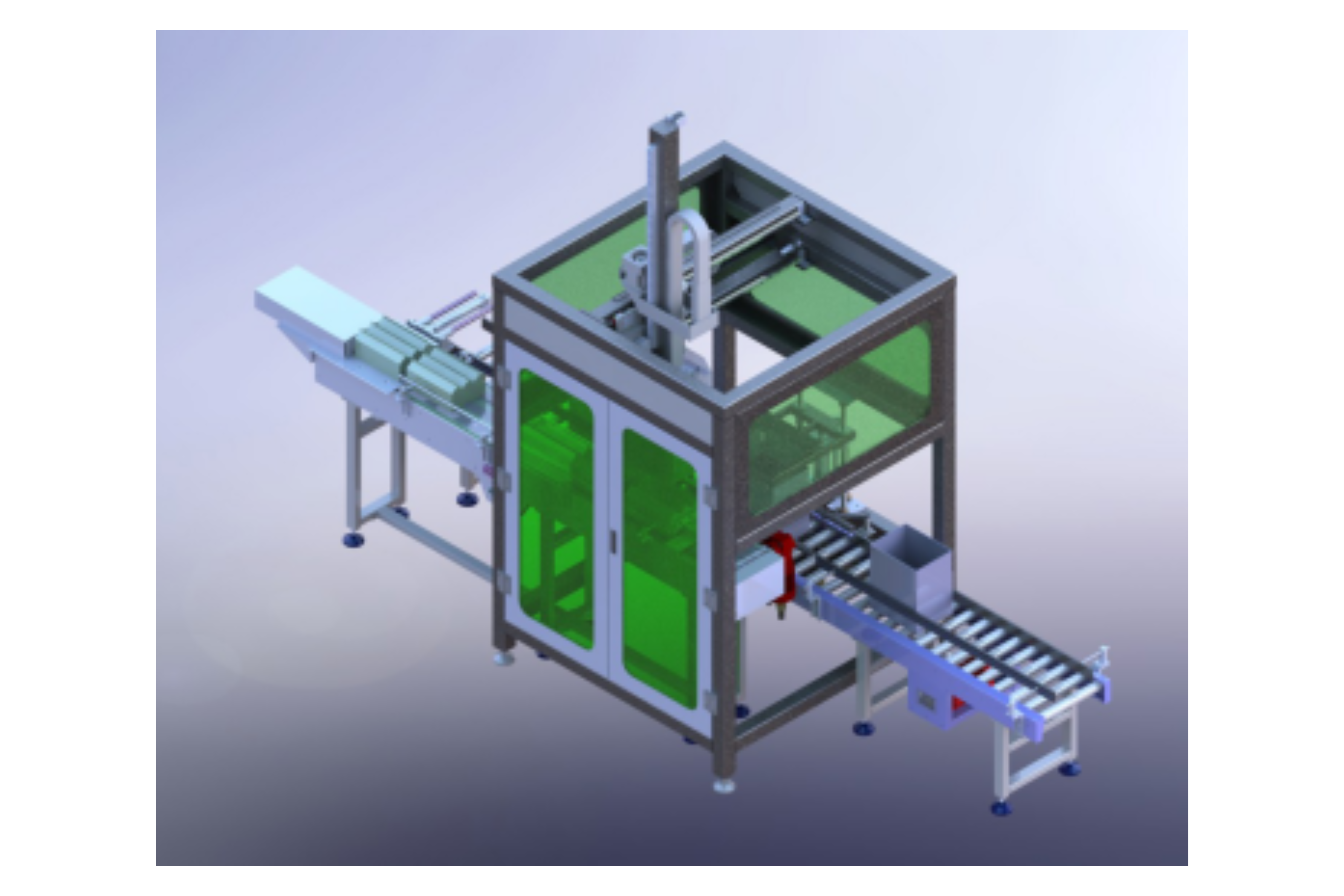

Automatic servo type pick and place case packer WWP-SP01



Technical parameters, Technical parameters

product model

WWP-SP01

Boating speed

In 2-6 cases / minute

Carton size

L 200-500 * W150-500 * H150-500mm (customizable)

Power / power

380V 6KW 50/60HZ

air supply

0.4-0.8MPa

Machine size

L 4500 * W1500 * 3200mm (including feed line)

machine weight

1000kg

Product description:

  • This equipment is an intelligent automatic packing machine, using high-speed distribution device to package various containers, including bottles, boxes, bags, heterosexual items, etc., and also applicable to packing boxes with partition plates.

  • The fixture can use suction head, claw hand, etc., put the material into the open carton, when the fixture is lifted, the carton is discharged and sent to the sealing machine (this packing method is driven by "Japan Panasonic" servo motor).

  • This machine is controlled by the Mitsubishi PLC + touch display screen. With material shortage warning shutdown, no material, no packing and other devices.

  • This equipment is greatly convenient to operate, manage, reduce production personnel and labor intensity, is an essential equipment for automatic scale production.

  • All the electrical components are selected by well-known brands, and the whole machine performance is stable and reliable.
